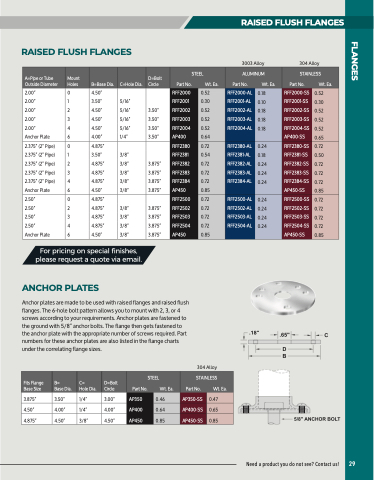

RAISED FLUSH FLANGES
RAISED FLUSH FLANGES
3003 Alloy
304 Alloy
A=Pipe or Tube Outside Diameter
Mount Holes
B=Base Dia.
C=Hole Dia.
D=Bolt Circle
STEEL
ALUMINUM
STAINLESS
Part No.
Wt. Ea.
Part No.
Wt. Ea.
Part No.
Wt. Ea.
2.00”
0
4.50”
RFF2000
0.52
RFF2000-AL
0.18
RFF2000-SS
0.52
2.00”
1
3.50”
5/16”
RFF2001
0.30
RFF2001-AL
0.10
RFF2001-SS
0.30
2.00”
2
4.50”
5/16”
3.50”
RFF2002
0.52
RFF2002-AL
0.18
RFF2002-SS
0.52
2.00”
3
4.50”
5/16”
3.50”
RFF2003
0.52
RFF2003-AL
0.18
RFF2003-SS
0.52
2.00”
4
4.50”
5/16”
3.50”
RFF2004
0.52
RFF2004-AL
0.18
RFF2004-SS
0.52
Anchor Plate
6
4.00”
1/4”
3.50”
AP400
0.64
AP400-SS
0.65
2.375” (2” Pipe)
0
4.875”
RFF2380
0.72
RFF2380-AL
0.24
RFF2380-SS
0.72
2.375” (2” Pipe)
1
3.50”
3/8”
RFF2381
0.54
RFF2381-AL
0.18
RFF2381-SS
0.50
2.375” (2” Pipe)
2
4.875”
3/8”
3.875”
RFF2382
0.72
RFF2382-AL
0.24
RFF2382-SS
0.72
2.375” (2” Pipe)
3
4.875”
3/8”
3.875”
RFF2383
0.72
RFF2383-AL
0.24
RFF2383-SS
0.72
2.375” (2” Pipe)
4
4.875”
3/8”
3.875”
RFF2384
0.72
RFF2384-AL
0.24
RFF2384-SS
0.72
Anchor Plate
6
4.50”
3/8”
3.875”
AP450
0.85
AP450-SS
0.85
2.50”
0
4.875”
RFF2500
0.72
RFF2500-AL
0.24
RFF2500-SS
0.72
2.50”
2
4.875”
3/8”
3.875”
RFF2502
0.72
RFF2502-AL
0.24
RFF2502-SS
0.72
2.50”
3
4.875”
3/8”
3.875”
RFF2503
0.72
RFF2503-AL
0.24
RFF2503-SS
0.72
2.50”
4
4.875”
3/8”
3.875”
RFF2504
0.72
RFF2504-AL
0.24
RFF2504-SS
0.72
Anchor Plate
6
4.50”
3/8”
3.875”
AP450
0.85
AP450-SS
0.85
ANCHOR PLATES
Anchor plates are made to be used with raised flanges and raised flush flanges. The 6-hole bolt pattern allows you to mount with 2, 3, or 4 screws according to your requirements. Anchor plates are fastened to the ground with 5/8” anchor bolts. The flange then gets fastened to the anchor plate with the appropriate number of screws required. Part numbers for these anchor plates are also listed in the flange charts under the correlating flange sizes.
304 Alloy
Fits Flange Base Size
B=
Base Dia.
C=
Hole Dia.
D=Bolt Circle
STEEL
STAINLESS
Part No.
Wt. Ea.
Part No.
Wt. Ea.
3.875”
3.50”
1/4”
3.00”
AP350
0.46
AP350-SS
0.47
4.50”
4.00”
1/4”
4.00”
AP400
0.64
AP400-SS
0.65
4.875”
4.50”
3/8”
4.50”
AP450
0.85
AP450-SS
0.85
Need a product you do not see? Contact us!
