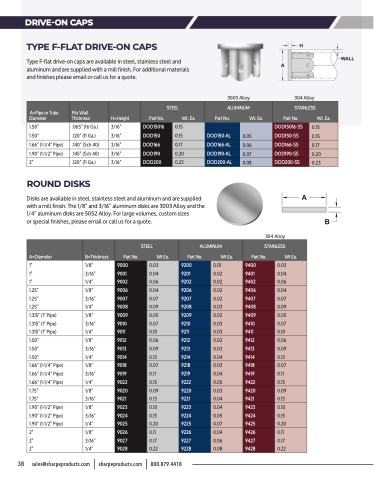

DRIVE-ON CAPS
TYPE F-FLAT DRIVE-ON CAPS
Type F-flat drive-on caps are available in steel, stainless steel and aluminum and are supplied with a mill finish. For additional materials and finishes please email or call us for a quote.
3003 Alloy
304 Alloy
A=Pipe or Tube Diameter
Fits Wall Thickness
H=Height
STEEL
ALUMINUM
STAINLESS
ROUND DISKS
Disks are available in steel, stainless steel and aluminum and are supplied with a mill finish. The 1/8” and 3/16” aluminum disks are 3003 Alloy and the 1/4” aluminum disks are 5052 Alloy. For large volumes, custom sizes
or special finishes, please email or call us for a quote.
304 Alloy
A=Diameter
B=Thickness
STEEL
ALUMINUM
STAINLESS
Part No.
Wt Ea.
Part No.
Wt Ea.
Part No.
Wt Ea.
1”
1/8”
9000
0.03
9200
0.01
9400
0.03
1”
3/16”
9001
0.04
9201
0.02
9401
0.04
1”
1/4”
9002
0.06
9202
0.02
9402
0.06
1.25”
1/8”
9006
0.04
9206
0.02
9406
0.04
1.25”
3/16”
9007
0.07
9207
0.02
9407
0.07
1.25”
1/4”
9008
0.09
9208
0.03
9408
0.09
1.315” (1” Pipe)
1/8”
9009
0.05
9209
0.02
9409
0.05
1.315” (1” Pipe)
3/16”
9010
0.07
9210
0.03
9410
0.07
1.315” (1” Pipe)
1/4”
9011
0.10
9211
0.03
9411
0.10
1.50”
1/8”
9012
0.06
9212
0.02
9412
0.06
1.50”
3/16”
9013
0.09
9213
0.03
9413
0.09
1.50”
1/4”
9014
0.13
9214
0.04
9414
0.13
1.66” (1-1/4” Pipe)
1/8”
9018
0.07
9218
0.03
9418
0.07
1.66” (1-1/4” Pipe)
3/16”
9019
0.11
9219
0.04
9419
0.11
1.66” (1-1/4” Pipe)
1/4”
9022
0.15
9222
0.05
9422
0.15
1.75”
1/8”
9020
0.09
9220
0.03
9420
0.09
1.75”
3/16”
9021
0.13
9221
0.04
9421
0.13
1.90” (1-1/2” Pipe)
1/8”
9023
0.10
9223
0.04
9423
0.10
1.90” (1-1/2” Pipe)
3/16”
9024
0.15
9224
0.05
9424
0.15
1.90” (1-1/2” Pipe)
1/4”
9025
0.20
9225
0.07
9425
0.20
2”
1/8”
9026
0.11
9226
0.04
9426
0.11
2”
3/16”
9027
0.17
9227
0.06
9427
0.17
2”
1/4”
9028
0.22
9228
0.08
9428
0.22
38
sales@sharpeproducts.com sharpeproducts.com 800.879.4418
1.50”
1.66” (1-1/4” Pipe)
1.90” (1-1/2” Pipe)
2”
.120” (11 Ga.)
.140” (Sch 40)
.145” (Sch 40)
.120” (11 Ga.)
3/16”
3/16”
Part No.
DOD150
DOD166
DOD190
0.15
0.17
0.20
0.23
Wt. Ea.
Part No.
DOD150-AL
DOD166-AL
DOD190-AL
DOD200-AL
0.05
0.06
0.08
Wt. Ea.
Part No.
DOD150-SS
DOD166-SS
DOD190-SS
0.15
0.15
0.17
Wt. Ea.
3/16”
DOD200
0.07
DOD200-SS
0.20
3/16”
0.23
1.50” .065” (16 Ga.) 3/16” DOD15016 0.15 DOD15016-SS
