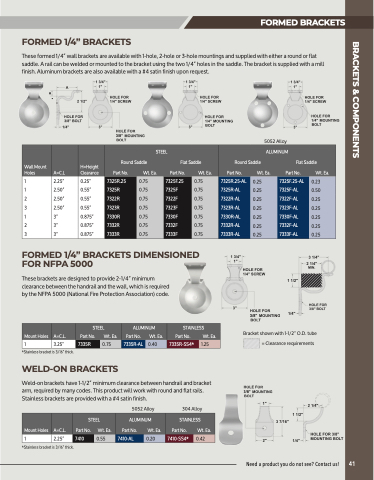

Page 43 - Sharpe_2021 Catalog FlipBook

FORMED 1/4” BRACKETS
These formed 1/4” wall brackets are available with 1-hole, 2-hole or 3-hole mountings and supplied with either a round or flat saddle. A rail can be welded or mounted to the bracket using the two 1/4” holes in the saddle. The bracket is supplied with a mill finish. Aluminum brackets are also available with a #4 satin finish upon request.
BRACKETS & COMPONENTS
Wall Mount
Holes A=C.L
1 2.25” 1 2.50” 2 2.50” 3 2.50” 1 3”
2 3” 3 3”
Round Saddle
Flat Saddle
Round Saddle
Flat Saddle
Mount Holes
A=C.L.
STEEL
Part No. Wt. Ea.
ALUMINUM Part No. Wt. Ea.
7335R-AL 0.40
STAINLESS
Bracket shown with 1-1/2” O.D. tube = Clearance requirements
3/8
1
*Stainless bracket is 3/16” thick.
Part No. 7335R-SS4*
Wt. Ea.
1.25
3.25”
7335R 0.75 WELD-ON BRACKETS
H=Height
Clearance Part No.
0.25” 7325R.25 0.55” 7325R 0.55” 7322R 0.55” 7323R 0.875” 7330R 0.875” 7332R 0.875” 7333R
Wt. Ea.
0.75 0.75 0.75 0.75 0.75 0.75 0.75
Part No. 7325F.25 7325F 7322F 7323F 7330F 7332F 7333F
Wt. Ea.
0.75 0.75 0.75 0.75 0.75 0.75 0.75
Part No. 7325R.25-AL 7325R-AL 7322R-AL 7323R-AL 7330R-AL 7332R-AL 7333R-AL
Wt. Ea.
0.25 0.25 0.25 0.25 0.25 0.25 0.25
Part No. 7325F.25-AL 7325F-AL 7322F-AL 7323F-AL 7330F-AL 7332F-AL 7333F-AL
Wt. Ea.
0.23 0.50 0.25 0.25 0.25 0.25 0.25
FORMED 1/4” BRACKETS DIMENSIONED FOR NFPA 5000
These brackets are designed to provide 2-1/4” minimum clearance between the handrail and the wall, which is required by the NFPA 5000 (National Fire Protection Association) code.
3/8
5052 Alloy
ALUMINUM
Weld-on brackets have 1-1/2” minimum clearance between handrail and bracket arm, required by many codes. This product will work with round and flat rails. Stainless brackets are provided with a #4 satin finish.
STEEL Mount Holes A=C.L. Part No. Wt. Ea.
5052 Alloy
ALUMINUM
Part No. Wt. Ea.
7410-AL 0.20
304 Alloy
STAINLESS
Part No. Wt. Ea.
7410-SS4* 0.42
1 2.25”
7410 0.55
*Stainless bracket is 3/16” thick.
STEEL
3/8
FORMED BRACKETS
Need a product you do not see? Contact us! 41
